MH175/U/IC

Highlights

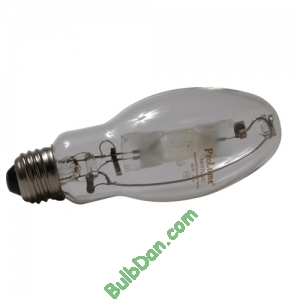

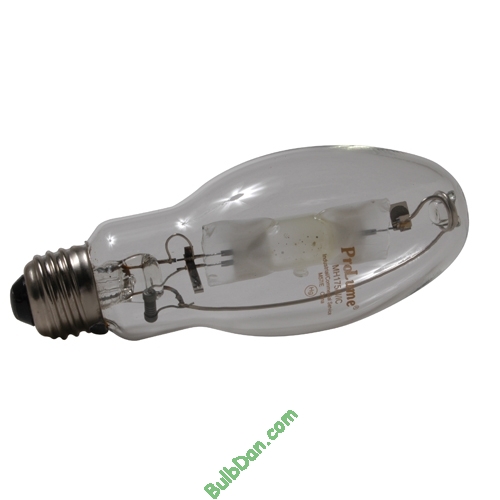

175 Watt, ED28, Mogul base, metal halide, probe start, high intensity discharge clear bulb (ANSI Code: M57/E)
Price$15.70excl. TAX
Code807154182008
Manufacturer Code108200
Qty
AvailabilityUsually ships in 24 hours
ShippingCan ship anywhere
Replaces GE MVR175/U, Philips MH175/U, Osram/Sylvania M175/U, ANSI M57/E
NoteLamps classified as E-type are used ONLY in suitably enclosed luminaries. See lamp warning. Color characteristics may vary somewhat from one lamp to another. Time should be allowed for lamp to stabilize in color when it is turned on for the first time or if for any reason its operating position is changed. This may require several hours of operation, with more than one start. Lamp color and output may change temporarily if the lamp is subjected to excess vibration or shock. Lamp color characteristics may change after long accumulated operating time. Requires ballast that is designed to operate all popular brands of Metal Halide lamps. 1000W types will operate from H36 conventional lag type ballast for Mercury Vapor lamps at ambient temperatures of 50°F or higher. 1000W types must not be operated at 1500W or higher. UV-Stop Quartz filtered design. In general, horizontal lumens will be 5-10% lower than the vertical lumen values. Turn power off before inspection, installation, or removal. Do not use where directly exposed to water or outdoors without an enclosed fixture. Keep combustible materials away from lamp. Do not exceed rated voltage. Use in fixture rated for this product. Do not use lamp if outer glass is scratched or broken. Use only properly rated ballast.
Specification
Product Type
HID
Bulb
ED28
Base
Mogul
Watts
175 W
Start Type
Probe Start
ANSI
M57/E
Color Temperature
4000
Color Rendering Index (CRI)
65
Initial Lumens
15200
Design Lumens
9100
Average Life
10000
MOL
8.25
Operating Position
Universal
Mercury Content (mg)
27.5
Case Quantity
12
Brand
ProLume
MOD
3.54
Nominal Length
8.25
Lens
Clear
KR85 Content
<120
Mercury
Yes
Open/Enclosed rated
Enclosed
UN2911
No
UV/IR Emissions
Yes
UNSPSC
39101614
Country of Origin
China
HTS Code
8539320040
Lumen Range
10001 - 20000
Efficacy (lm/W)
86.9
Weight
0.7349
Cross Reference
Replaces GE Part #
MVR175/U
Replaces Philips Part #
MH175/U
Replaces Osram/Sylvania Part #
M175/U
ANSI #
M57/E
